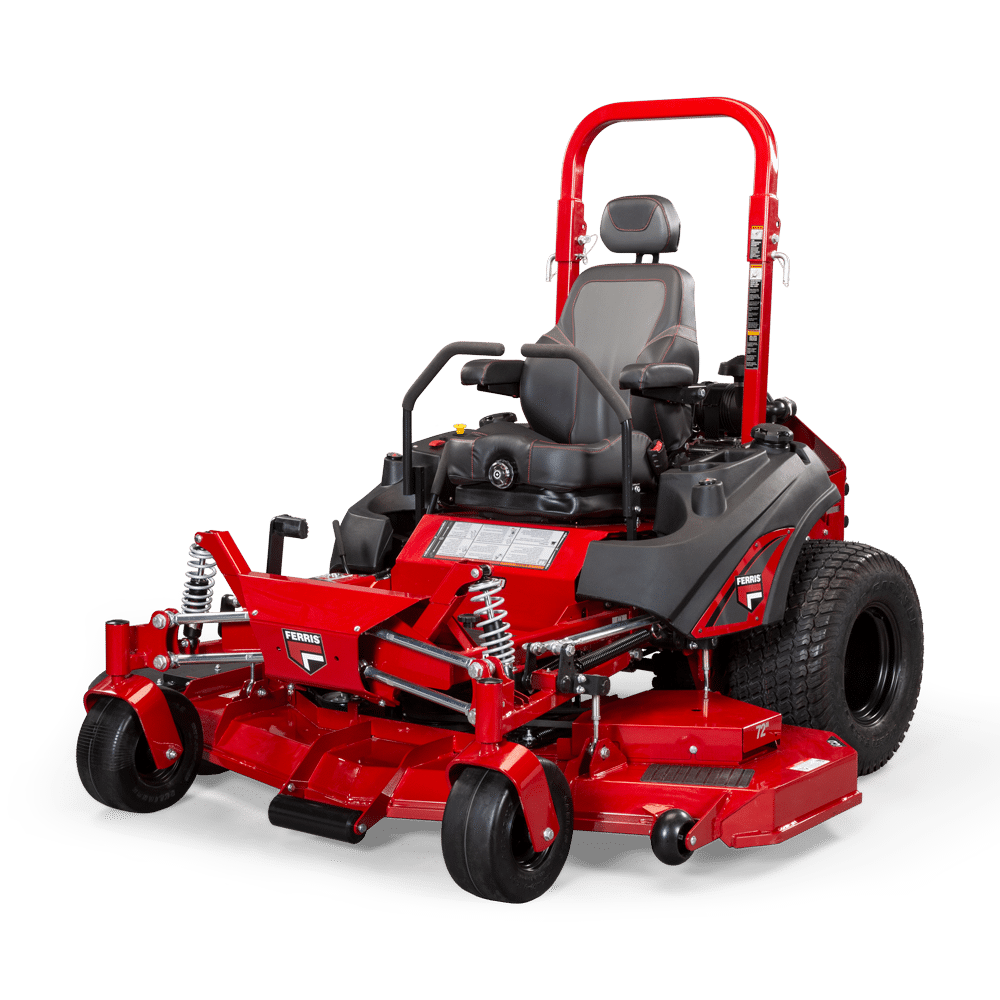

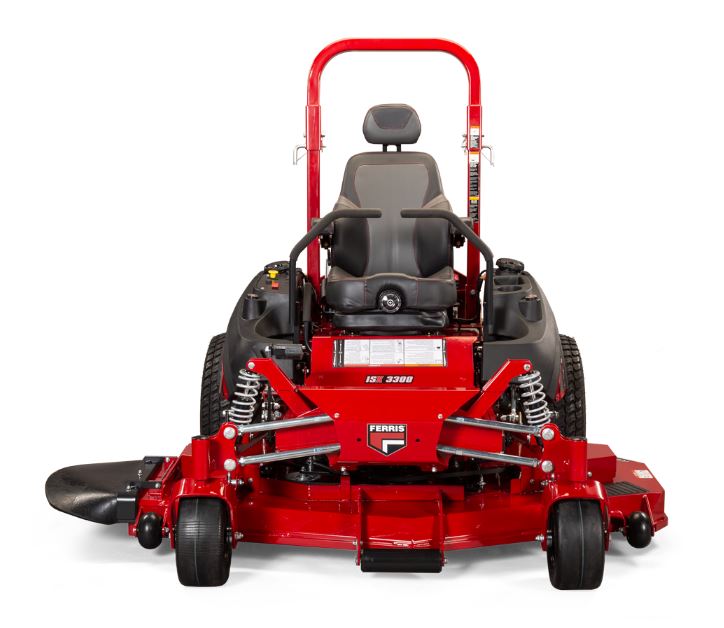

Ferris ISX3300 Zero Turn Mower
Built for the most demanding jobs while providing ultimate operator comfort, the ISX3300 features Ferris’s patented ForeFront™ Suspension system utilizing an independent front axle and coil-over shocks and a premium suspension seat, making it the most productive and comfortable zero-turn mower in our lineup.
Cutting Width
60-72"
Power Rating
31-40 HP
Limited Warranty
4 Years
Description
Featuring Ferris’s patented, next-generation ForeFront™ Suspension Technology and a premium suspension seat, the ISX3300 is the most productive and comfortable zero-turn mower in our lineup. It is built for the most demanding jobs while providing ultimate operator comfort. ForeFront™ Suspension Technology utilizes four upper and lower control rods, automotive-style, independent front axles, and coil-over-shock suspension in four corners of the mower to deliver superior comfort, more precise tracing of the terrain, and an improved cut. This innovative technology ensures that all four wheels remain in contact with the ground, regardless of the terrain, maximizing stability and traction on slopes, enhancing operator comfort, and improving cut quality.
Details
Featuring next-generation suspension technology, Ferris’s patented ForeFront™ Suspension Technology utilizes four upper and lower control rods and coil-over-shock suspension in four corners of the mower to deliver superior comfort, more precise tracing of the terrain, and an improved cut. ForeFront™ Suspension Technology utilizes automotive-style, independent front axles and innovative control arms to ensure that all four wheels remain in contact with the ground, regardless of the terrain, maximizing stability and traction on slopes, enhancing operator comfort, and improving cut quality.
Select models feature a premium high-back suspension seat with adjustable suspension for an extensive range of weights and operating conditions, optimizing operator comfort and increasing productivity. The premium seat also features a headrest, armrests, adjustable lumbar support, and a seat reclining option to further customize the ride and enhance operator comfort.
The heavy-duty dual commercial-grade Hydro-Gear® ZT-5400 Powertrain® transaxles provide a top ground speed of 12 MPH. The quick-fill system makes hydraulic maintenance much easier, and the dual hydraulic reservoirs reduce the risk of cross-contaminating the oil in the transaxles.
Select models feature a 40 HP Briggs & Stratton® engine with Oil Guard™ Technology, a revolutionary innovation with a 6-quart capacity located in an external reservoir. This extends the life of the oil and better protects the engine. This innovation increases the oil change interval from 100 hours to 500 hours, providing up to 60% savings on maintenance costs. An easy-fill cap and an integrated oil filter directly inside the oil reservoir cap make oil changes easier, cleaner, faster, and up to 80% more efficient. Plus, a one-quart mark on the dipstick shows you when it’s time to add oil. Simply open the easy-fill cap, pour a quart of oil right through the filter screen, and get back to work. To learn more about Oil Guard™ Technology, download the Oil Guard Innovation literature here. The 40 HP Briggs & Stratton® Vanguard® also comes with Electronic Fuel Injection (EFI) Technology that provides more consistent starting in all temperatures and reduced fuel consumption. The Engine Control Module (ECM) constantly monitors and fine-tunes every single engine operating point thousands of times per minute. It takes in all of the signals from the engine sensors to make cycle-by-cycle decisions on how much fuel and spark to provide the EFI engine and when to do it, improving starting and performance at all temperatures and elevations, resulting in load governance with on-demand power for maximum performance at faster speeds, and reducing fuel consumption.
If you don’t need the extra features of the Oil Guard™ System, the ISX3300 is also available with a 31 HP Kawasaki® engine, a 36 HP Vanguard™, or a 38.5 HP Kawasaki®Engine with Electronic Fuel Injection Technology. With the floating deck sizes available in 60″ and 72″, the ISX3300 increases productivity without sacrificing comfort or the trusted Ferris cut quality. The multiple choices in engines and deck sizes give commercial landscapers and homeowners alike the flexibility they need in choosing which mower will best suit their specific requirements.
Features
- Added Power and Performance with Engine Options Ranging from a 31 HP Kawasaki®, a 36 HP Vanguard™, a 38.5 HP Kawasaki® EFI Engine, or a 40 HP Briggs & Stratton® Vanguard® EFI Engine with Oil Guard™ Technology
- With the 40 HP Briggs & Stratton® Vanguard® EFI Engine with Oil Guard™ Technology, You Get a 500-Hour Oil Change Interval that can Reduce Maintenance Time and Costs by 60%. (Available Only on Select Models)
- Experience Suspension Like Never Before with Coil-Over-Shocks in Four Corners of the Mower that Deliver Superior Comfort, More Precise Tracing of the Terrain, and an Improved Cut
- ForeFront™ Suspension Technology Utilizes Automotive-Style, Independent Front Axles, and Innovative Control Arms to Ensure that all Four Wheels Remain in Contact with the Ground, Regardless of the Terrain, Maximizing Stability and Traction on Slopes, Enhancing Operator Comfort, and Improving Cut Quality.
- The Premium Suspension Seat Offers Adjustable Suspension, a Headrest, Armrests, Adjustable Lumbar Support, and Seat Recline
- The Dual Commercial-Grade Hydro-Gear® ZT-5400 Powertrain® Transaxles Offer Enhanced Performance in Commercial Applications
- Hercules™ II Cast-Iron Spindles are Built with 10″ Diameter Cast-Iron Spindle Housings with Industrial Double-Row Angular Contact Ball Bearings with a 1-3/16″ Diameter Shaft

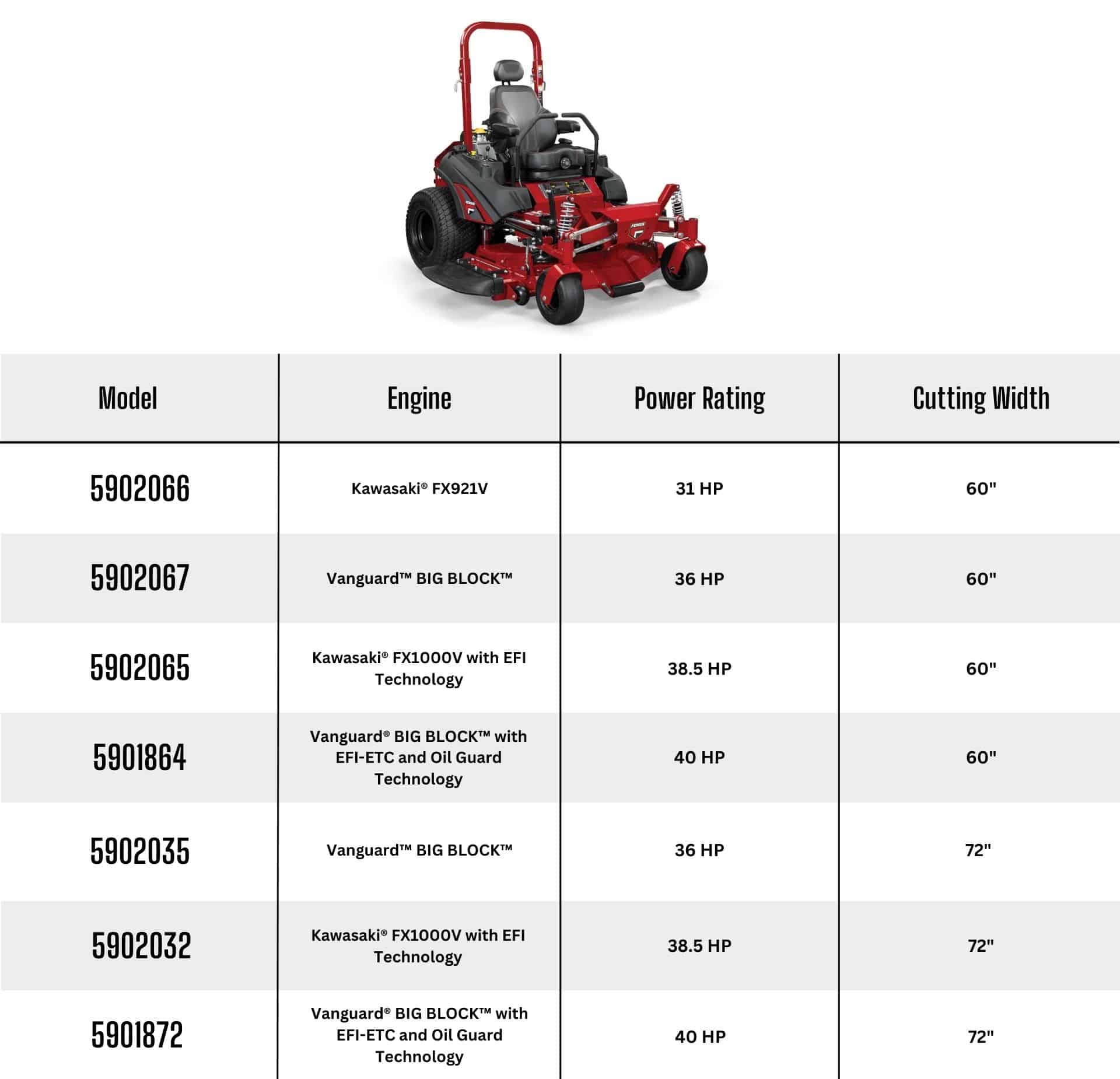

Models

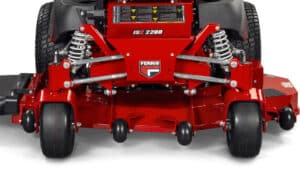

ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain, and an improved cut.

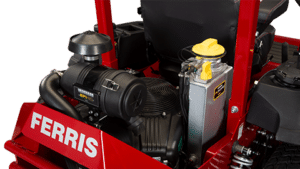

Vanguard BIG BLOCK™ Engine
The EFI-ETC Vanguard engine with Oil Guard Technology delivers a 500-hour oil change interval and, with 40 HP, increases cutting performance to excel in thick, dense, and wet conditions. Available only on select models.

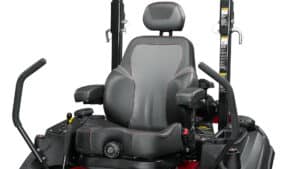

Premium High-Back Suspension Seat
Mow in superior comfort with adjustable suspension, armrests, a multi-position headrest, adjustable lumbar support, and seat recline.
Drive System
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans.
Hercules™ II Cast-Iron Spindles
10" diameter cast-iron spindle housings with industrial double-row angular contact ball bearings with a 1-3/16" diameter shaft.
5 Year Suspension Warranty
The Coil-Over-Shocks and all suspension-related components are covered under warranty for unlimited hours for five years. We are committed to providing performance, productivity, and durability.
